Removing blades

Tools: double-ended wrench (17mm)

1	Step on the ON of the caster stopper. (2 locations)
2	Make sure that the “電源(POWER)” lamp goes out and the power turns off.
3	Open the conveyor cover.
4	Open the open/close handle (snap lock).

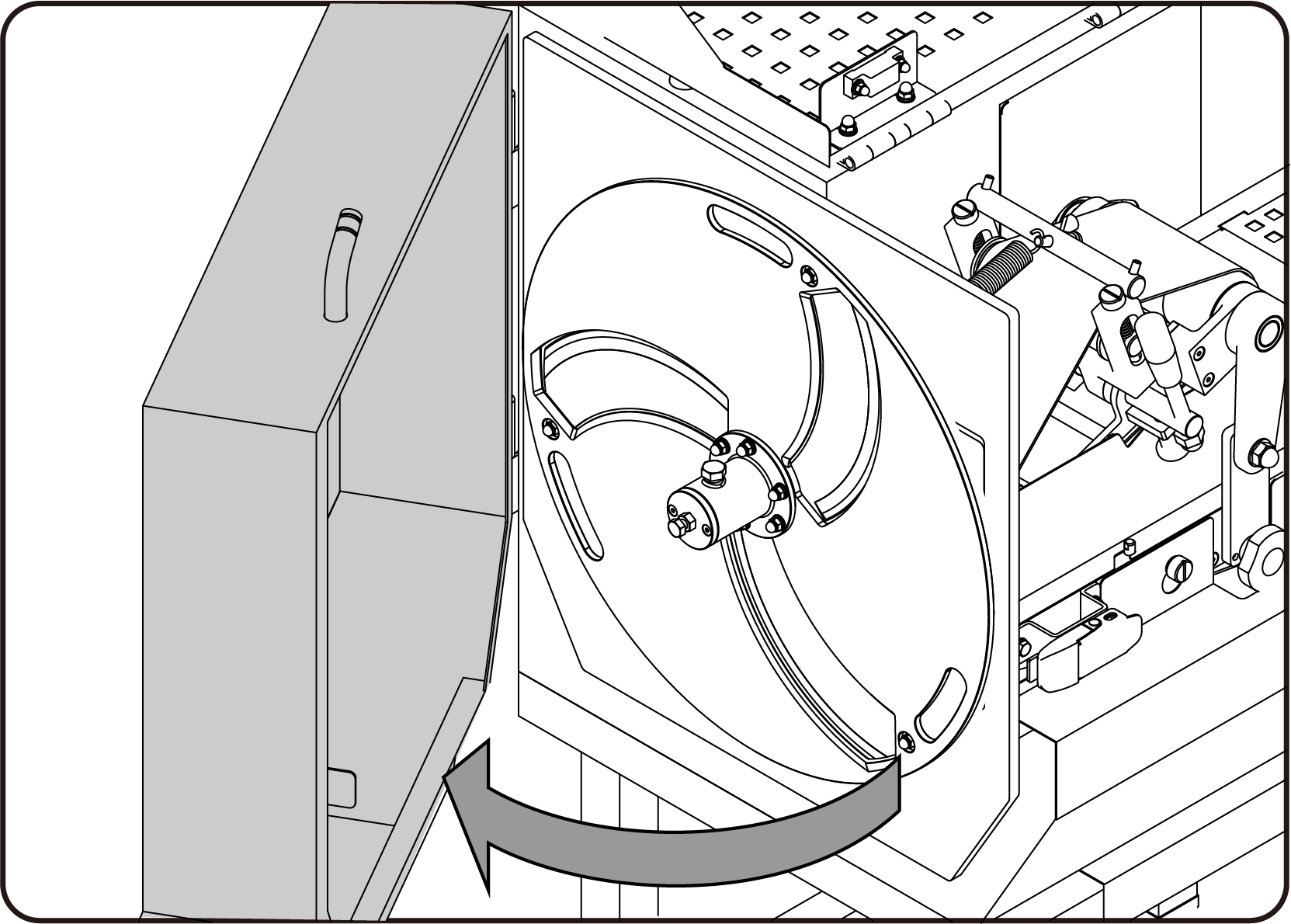

5	Open the cutter cover.
6	Loosen the blade tightening bolts. Loosen the blade tightening bolt by turning it to the left with a double-ended wrench (17 mm). The blade can be removed from the spindle by turning the blade tightening bolt a half round or 1 round. This will be enough to remove the blade from the spindle.

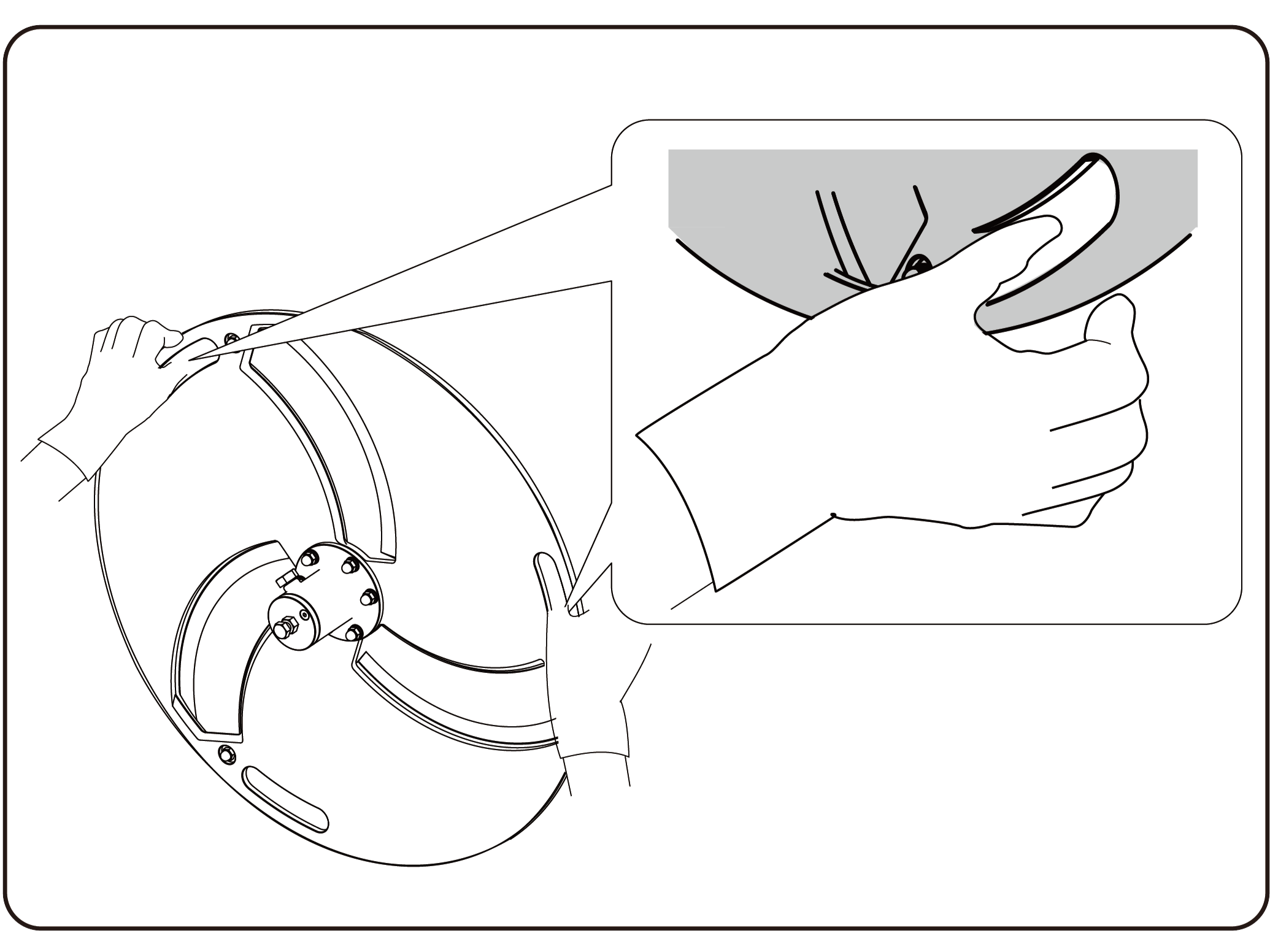

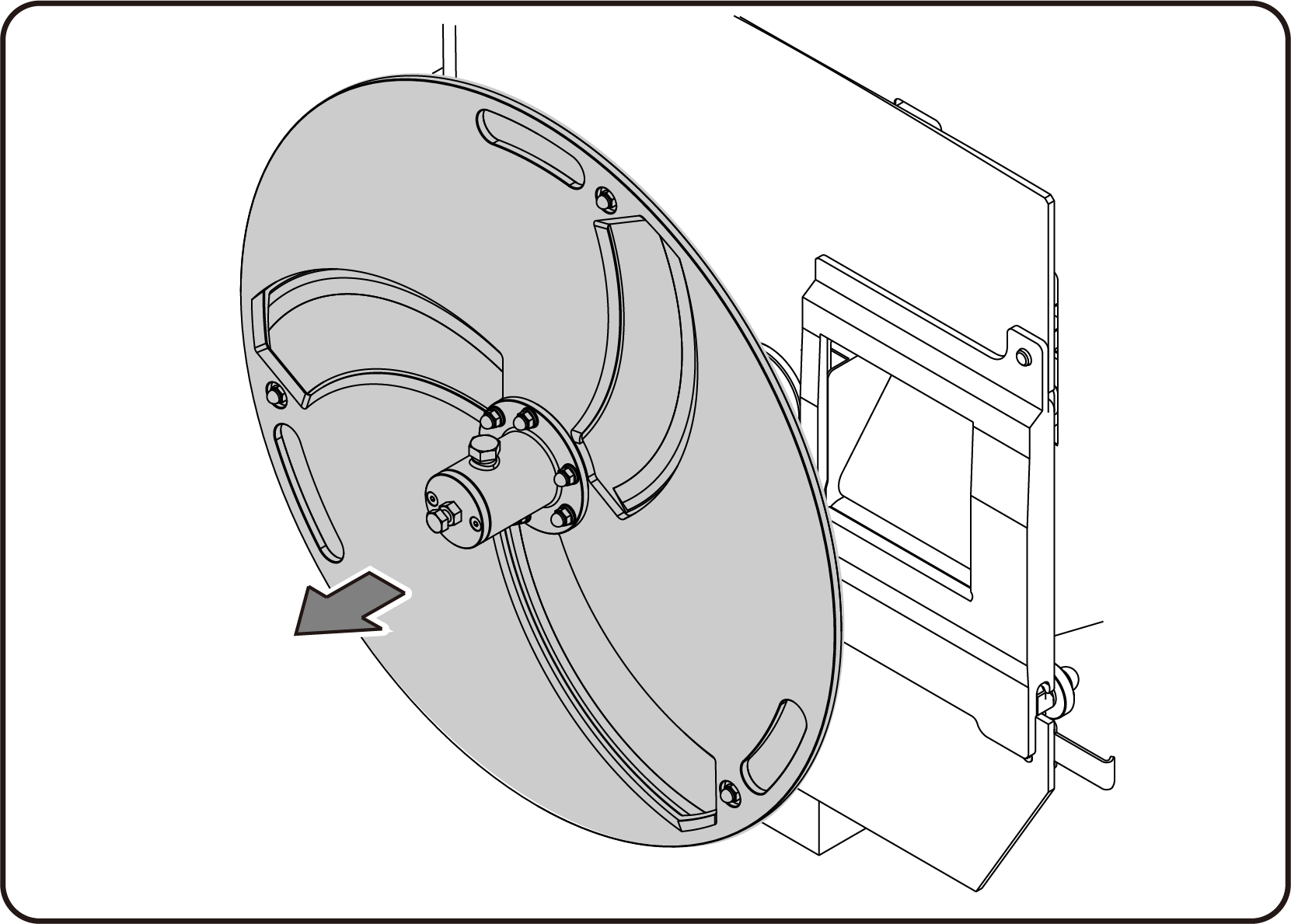

7	Insert your fingers into the plate hole and hold the plate firmly with both hands to remove it from the spindle.
